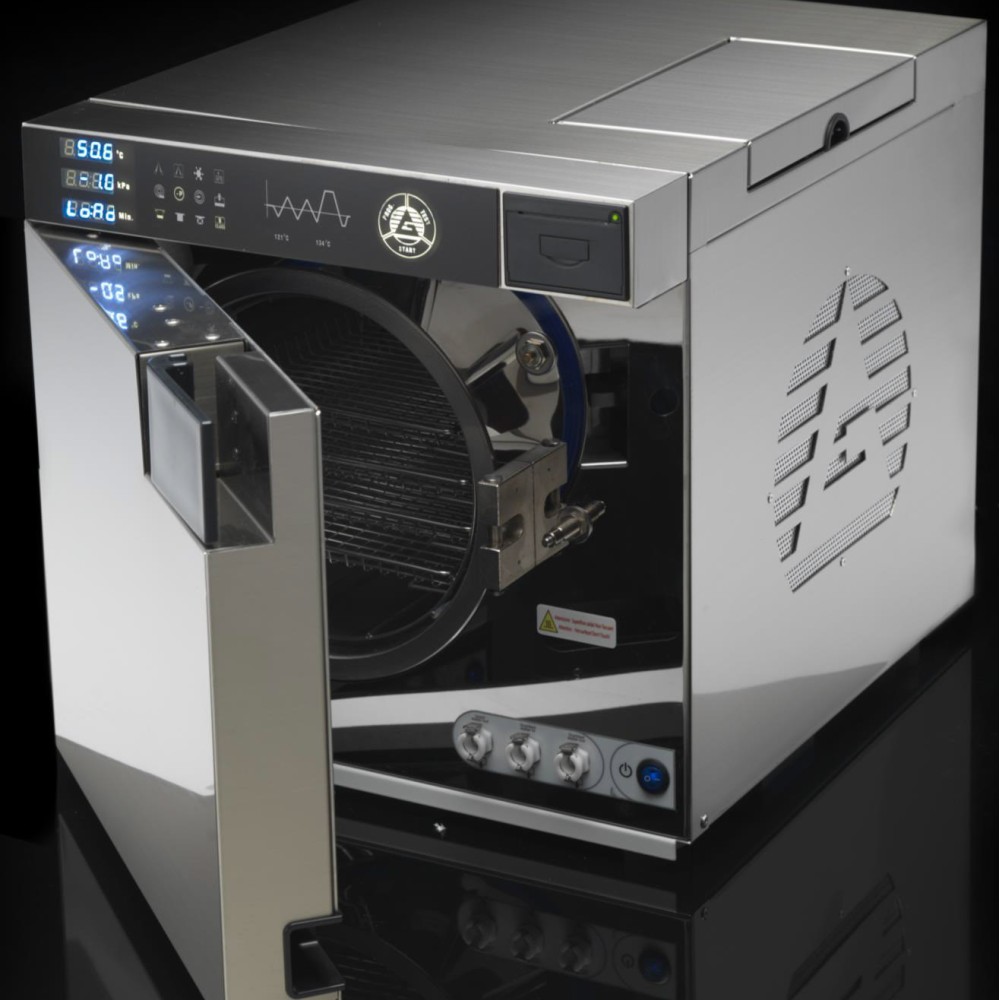

PRIMA AUTOCLAVE

AUTOCLAVE

PRIMA

Technical evolution, great design

Our Galbiati Lab, 100% Italian

Department of “research and development”, created PRIMA, Class B steam sterilizer with an uninitiated design sense of aesthetic cleanliness combined with technology state-of- the-art and easy to use.

Solid, easy to use with an uncommon elegance, it’s the new born of the Galbiati family, the first Italian production company of dental units.

Technical specifications

• Rated voltage: a.c.220V-230V, 50Hz
• Rated power: 18L 1500VA, 23L 1700VA
• Material: stainless steel (for medical)
• Max. work pressure: 2.5 bar Min. work pressure: -0.9 bar
• Max. temperature: 145 °C
• Chamber volume: 18L (Φ245×320mm) 23L (Φ245×450mm)
• Loading size: 18L (198×204×285) 23 L(198×204×385)
• Max. loading weight: 18L (3.07kg/cm2) 23L (3.21kg/cm2)
• Working pressure/temperature: 1.10~1.30bar / 121°C~122°C; 2.10~2.30bar / 134°C~135°C
• Water volume for one cycle: 0.16L (min) 0.18L(max)

Performances

• Fast cycles (26min for HOLLOW 134°C)
• Limited water consumption
• Automatic water download
• 100% steanless steel
• Electronic water quality control
• Easy to position system
• GKE helix comformity test
• Integrated printer and usb data saving systems
• 24 months warranty

Accessories

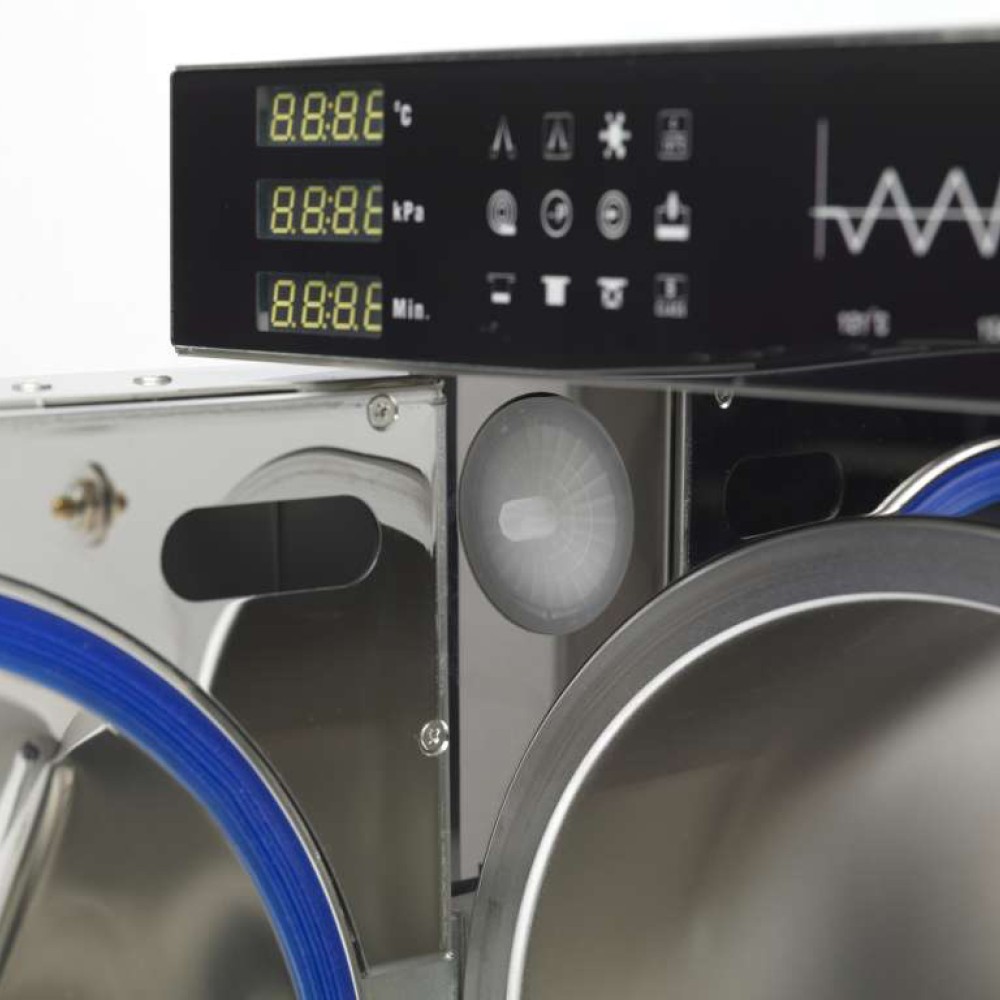

• Simple and intuitive control panel
• Cycle diagram display for live work control

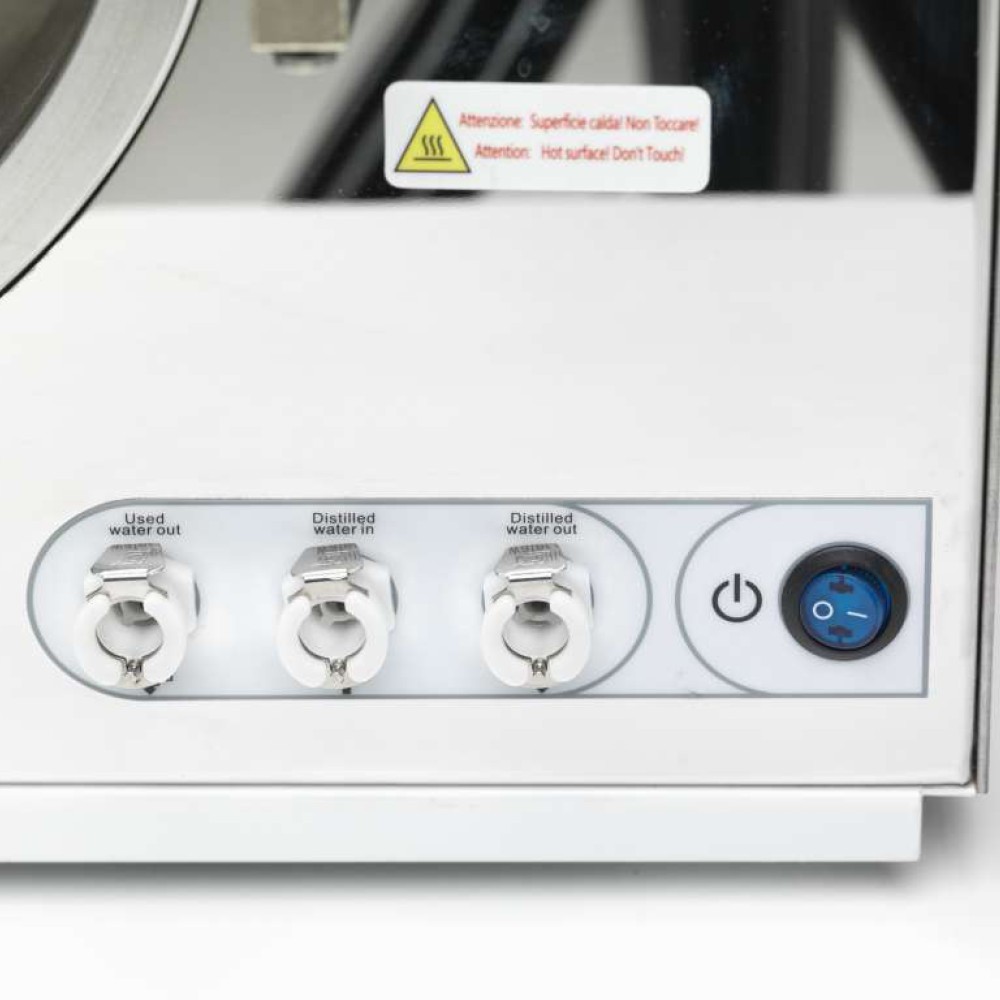

• Quick and easy water supply and drainage connection
• 4 storey trey door, usable also for surgical trey

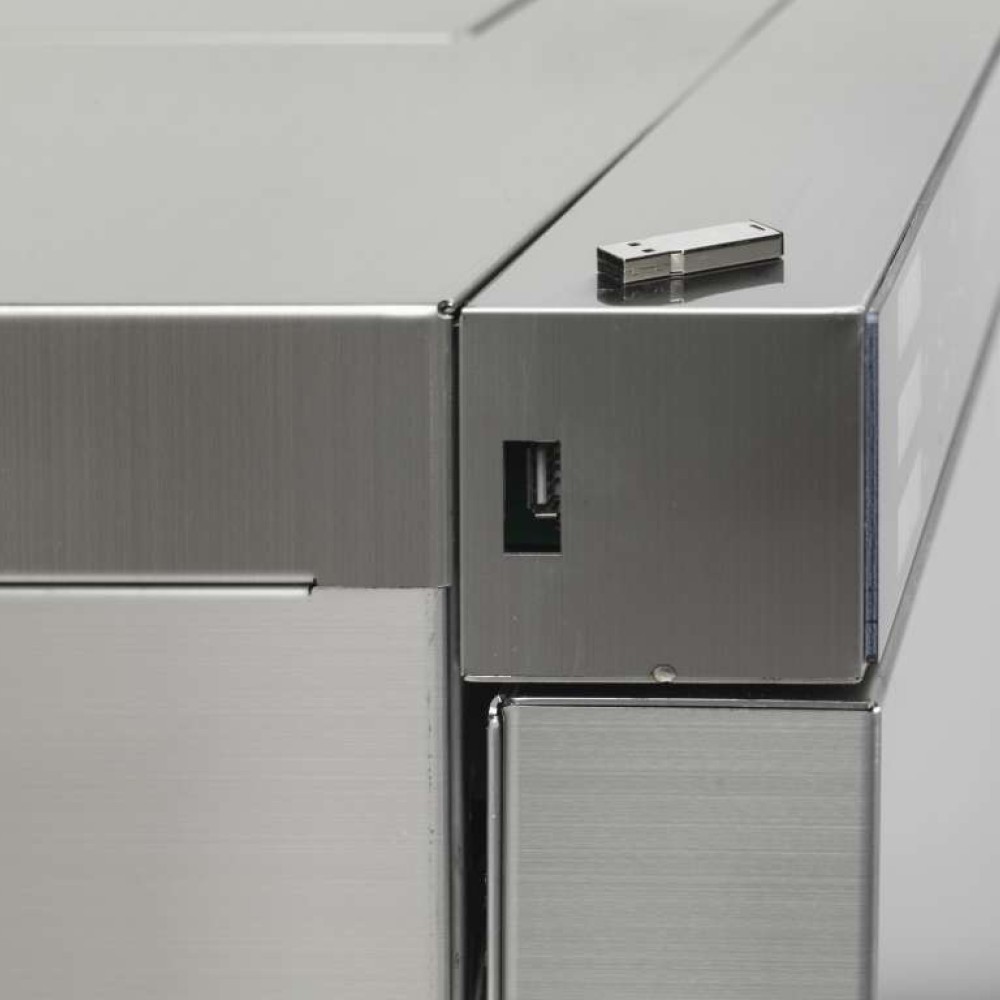

• Custom USB flash drive for PC cycling
• CD installation program saving PC cycles
